*PL-259 Covers*
By: Jaden
09 January 2006

Protecting the male threads which are typically a SO-239 connector on radio equipment is usually on most amateurs minds while moving equipment around. There is a simple easy fix.

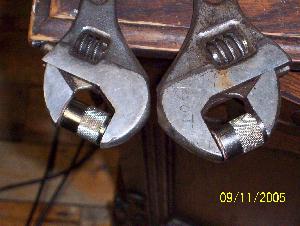

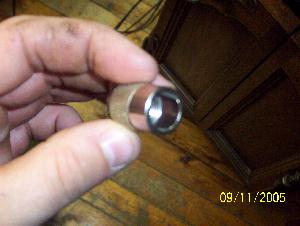

Use the collar from a Pl-259 connector and thread it on or even just the connector itself. Thatíll protect the threads. I just happened to have a bunch of collars around so I decided to solder dimes on the end. This will make them dustproof also. I smeared a little flux around the collarís rim and a little on the time and then used knucklebusters to hold them for soldering. Heated them up with a propane torch and put a little plumbing solder to them.

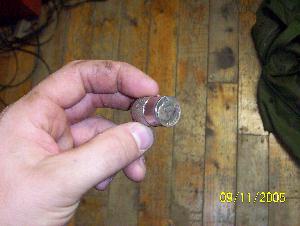

The finished product

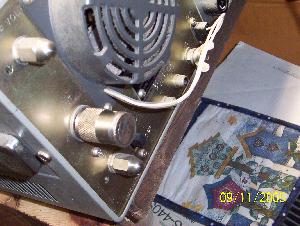

Cover in use

So far these have cost me 40 cents.
Jaden
