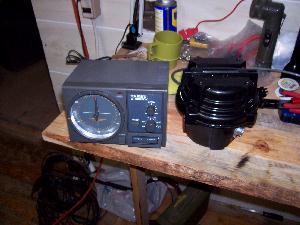

*Yaesu Rotor G-800SDX*

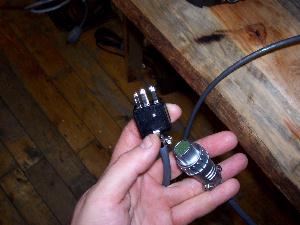

The brand new rotor I have didn’t come with a pin out for the control cable. The plug that goes into the rotor is numerically labeled, but the one that goes into the control box isn’t. So after going around in circles with tech support, here’s the pin out.

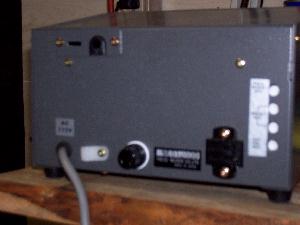

The plug on the back of the control box has one vertical pin. That is pin 1. Under it is pin 2, the top middle is #3, under that is 4, the top left is #5 and under that is #6. These coincide with the numbers on the rotor end’s plug.
Jaden
